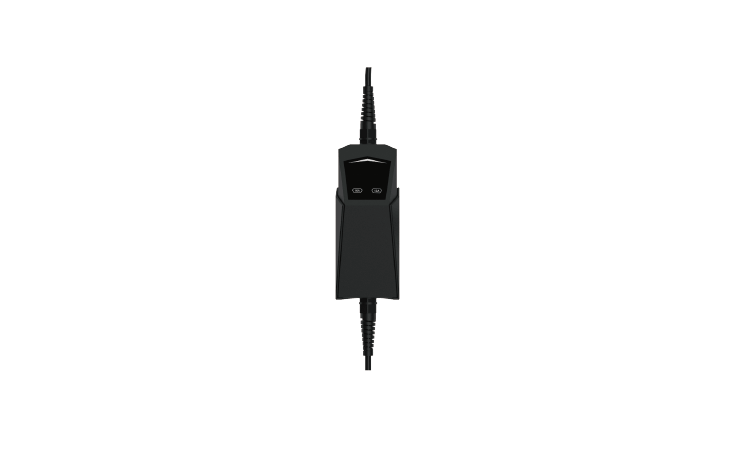

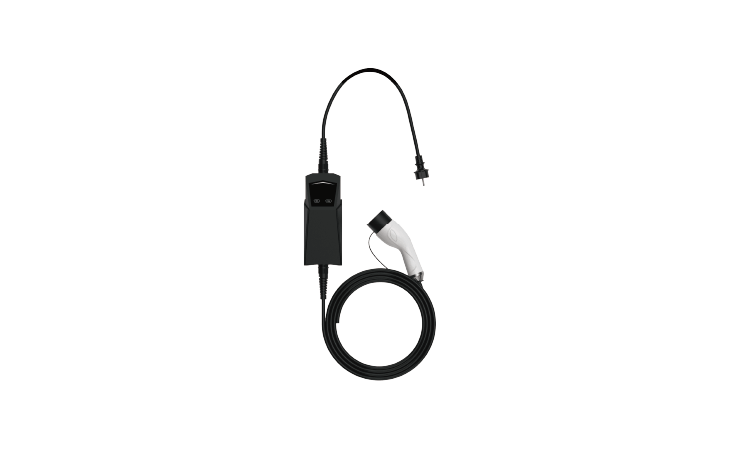

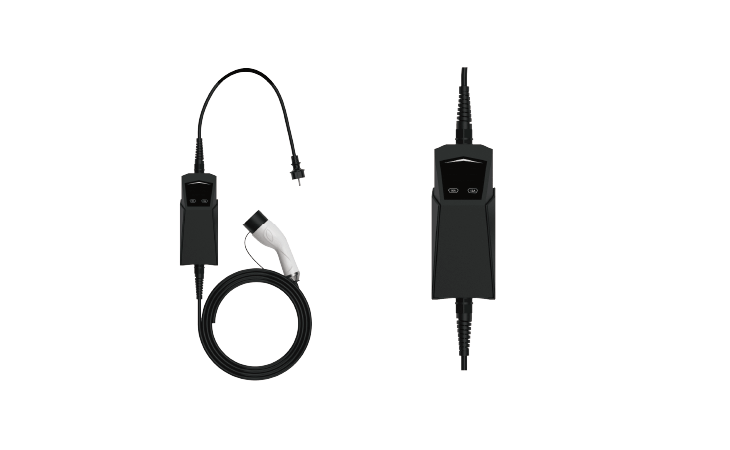

Product Brief Introduction
The appearance design of the product is stylish and simple, portable, mobile and flexible. Compatible with most European AC EVs, eliminating most brand restrictions for EV owners; LCD screen (optional) with light display to provide users with a better operating experience; High environmental adaptability, support -30℃-50℃ extreme environment use;
Technical Features
low noise
  • Low noise of charging module system;
  • Can be used for home, office area, residential area.
Flexible installation
  • Adapt to outdoor installation and use, fully consider the characteristics of outdoor application environment in the design process;
  • Optional 60KW/80KW/100/120/160KW power configuration.
Intelligent operation
  • Provide network monitoring function, can realize intelligent control through WiFi, support mobile phone operation billing function and RF card payment management function.
  • With automatic, fixed time, fixed amount, fixed power, fixed SOC and other charging settlement mode.
Safety escort
  • IP54 protection grade design, fully equipped with positive and negative bus DC contactor and safety, emergency stop protection switch, input lightning protection device, leakage switch, grounding and insulation detection and monitoring safety protection devices;
  • With system alarm, system log, charging record and BMS communication data storage and other functions, to meet the remote data reading and software upgrade functions.
Technical Parameters
specification parameter16A
electrical specificationRated Power3.6KW
rated output current16A
input voltageAC230V±15%
incoming frequency50HZ
Rated output voltage300-750V
Constant power interval voltage300-750V
voltage accuracy≤±0.5%
Current accuracy (current regulation)≤±1%
harmonic coefficient≤±0.5%
Maximum module efficiency≥95%
Power Factor＞0.99
environmental conditionsWorking Temperature-30℃～＋55℃
operating humidity5%~95% （Without Condensation）
Altitude≤2000m（Derating over 2000m）
Level Of ProtectionIP65
type of coolingair cooling
noise control＜50 db
structural featureEquipment size (L * W * H)250mm×95mm×75mm
Cabinet materialplastic
installation methodWall mounted/column type
cable length6m
Product Featurescharging modeAutomatic charging, charging by amount, charging by power, charging at set time
communication interfacewithout
LED Lightsupport
LCDsupport
safety requirementsdefensive functionOvervoltage protection, undervoltage protection, overload protection, short circuit protection, leakage protection, grounding protection, high temperature protection, low temperature protection, lightning protection
according to the standardIEC 62196、IEC 61851
