Product Brief Introduction

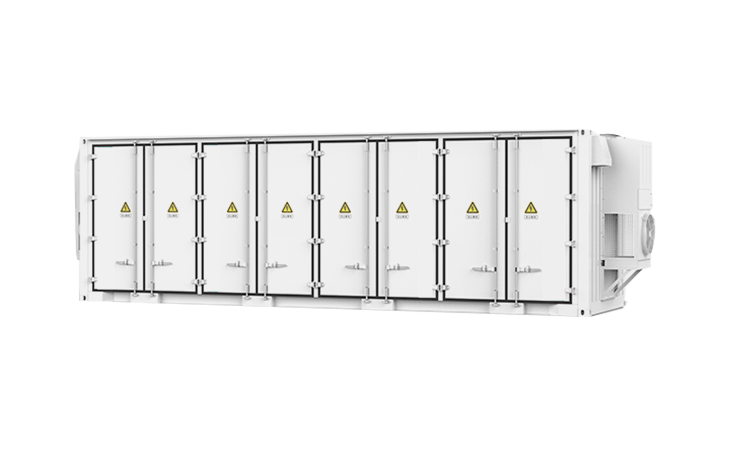

Power products are designed with domestic first-line power cell, integrating power system, BMS system, temperature control system, environmental control system, fire protection system, lighting system and grounding system. The product specifications cover 3 types of container sizes, such as 20HC, 30HC and 40HC. The maximum capacity of a single box is 5.22MWh, and the minimum is 1.89MWh. It can meet customers' application scenarios of various capacities.
Technical Features
Cloud Technology
  • Quality tracking and quality analysis throughout the life cycle to establish early warning capability of product life;
  • Active balancing scheme;
Intelligent And Efficient
  • Intelligent U-POWER power control system;
  • High-precision battery SOX estimation;
  • Intelligent constant temperature design, cold and hot air isolation;
Modular Design
  • Modular design, flexible capacity configuration;
Safe and Reliable
  • Pack level detection and protection, multi-stage gas + water fire automatic fire extinguishing system;
Technical Parameters
Product ModelF1502 series
type of container20HC30HC40HC
Full Capacity2.24MWh3.73MWh5.22MWh
Configurable Capacity1.89~2.242.52~3.733.78~5.22
Adaptive voltage range1000-1500V
Charge And Discharge Ratio0.5CP/1CP
Cell ParameterLFP-3.2V-280Ah-896Wh
Module ParameterLFP-51.2V-280Ah-14.336kwh
Cycle Life8000times-0.5CP/6000times-1CP(90%DOD,≥70%EOL)
cycle efficiency≥94%-0.5CP/≥91%-1CP(DC side)
BMS SchemeActive equalization + Three-level architecture
Communication InterfaceEthernet/RS-485/CAN
Communication ProtocolModbus-TCP/IEC61850/104
Temperature Control SchemeIntelligent variable frequency air cooling
Fire Protection SchemeGas/smoke/temperature detection + SEvofluoropropane + water firefighting + perfluorohexanone (optional) + active exhaust
Insulation Resistance＞10MΩ
auxiliary power supplyAC380V-50Hz
Altitude≤5000m(> 3000m capacity reduction)
Allowable Ambient Temperature-40~+55°C
Allowable Relative Humidity0~95%Rh(Without Condensation）
Level Of ProtectionIP65
Corrosion-Proof GradeC4(C5 Optional）
Size (Width * depth * height)6058*2438*2896mm
Full Weight24T37T51T
Product CertificationGB/T36276、GB/T34131、UL1973、UL9540A、IEC62619、UN38.3
