Product Brief Introduction

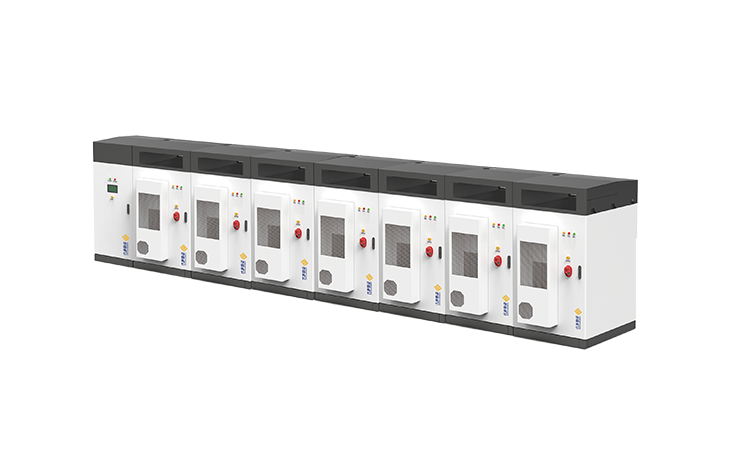

Series products use high-performance LFP cells with a cycle life of up to 8,000 times. Products adopt an active balance solution, built-in cloud equipment, support remote maintenance and monitoring, and fully control the system status. Single product capacity up to 366kWh, support multi-cabinet parallel use, can cover a wide application range of 215kW~2.58MW. The product adopts the integrated transportation scheme, the site construction is simple, and the site construction period and cost can be greatly shortened.
Technical Features
Flexible Configuration
  • Cabinet modular design, easy maintenance and installation, integrated transportation, simple site construction;
Ultra-Long Life
  • The battery is 100%DOD deep discharge, and the cycle life under standard working conditions exceeds 6500 times;
Safe and Reliable
  • C5 anti-corrosion grade design to meet a variety of application environments;
  • System hierarchical linkage protection, to ensure the overall security of the system;
Intelligent And Efficient
  • Battery intelligent constant temperature control, high protection structure design, to meet the outdoor use
Technical Parameters
Product ModelESS215-2580
Full Capacity215kWh*12
Configurable Capacity215kwh~2.58MWh
Cell ParameterLFP-3.2V-280Ah-896Wh
Module ParameterLFP-76.8V-280Ah-21.504kwh
DC(direct current)150A
Dc Voltage Range650~900Vdc
Charge And Discharge Ratio0.5CP
Cycle Life8000 times(90%DOD,≥70%EOL)
BMS SchemeActive equalization
Communication InterfaceEthernet/RS-485/CAN
Communication ProtocolModbus-TCP/EC61850/104
Temperature Control SchemeIntelligent variable frequency air cooling
Fire Protection SchemeGas/smoke/temperature detection + perfluorohexanone + water isolation Fire protection
Rated AC Voltage380Vac/3W+N+PE
Ac Voltage Range-15%~10%(Range can be set)
Rated Ac Power100kW*n
Rated Alternating Current145A*n
Output Power110kVA*n
Power Factor0.99（adjustable extent-1~+1）
Rated Operating Frequency50Hz
Harmonic Distortion＜3%（Rated Power）
DC Component＜0.5%
Insulation Resistance＞3MΩ
Altitude≤2000m（＞2000mderate）
Allowable Ambient Temperature-30~+55°C
Allowable Relative Humidity0~95%Rh(Without Condensation）
Level Of ProtectionP44
Corrosion-Proof GradeC4(C5 Optional）
Size (Width * depth * height)1200*1250*2450mm
Full Weight2T*n
Product CertificationGB/T36276.GB/T34131.GB/T34120、GB/T34133
